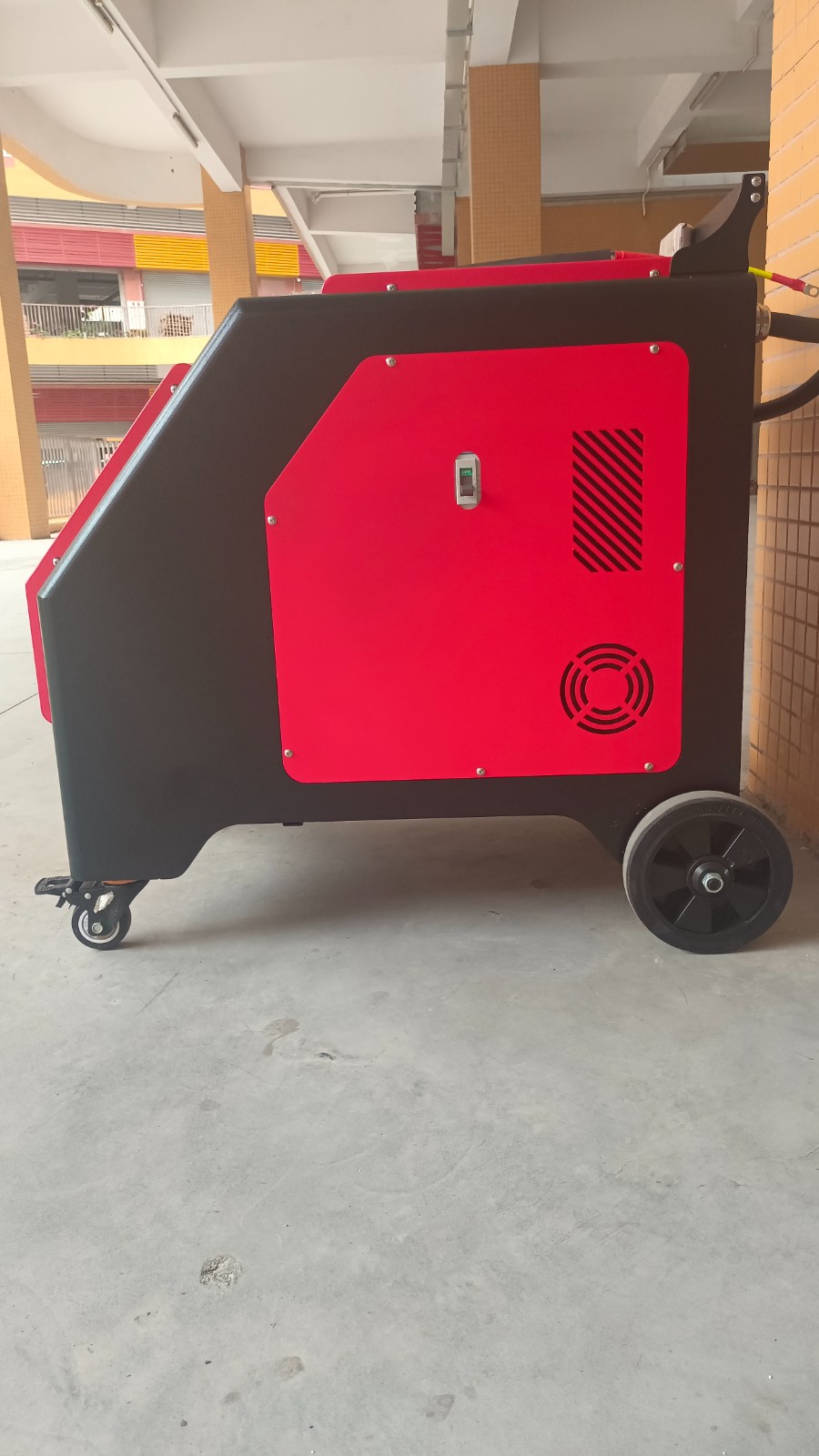

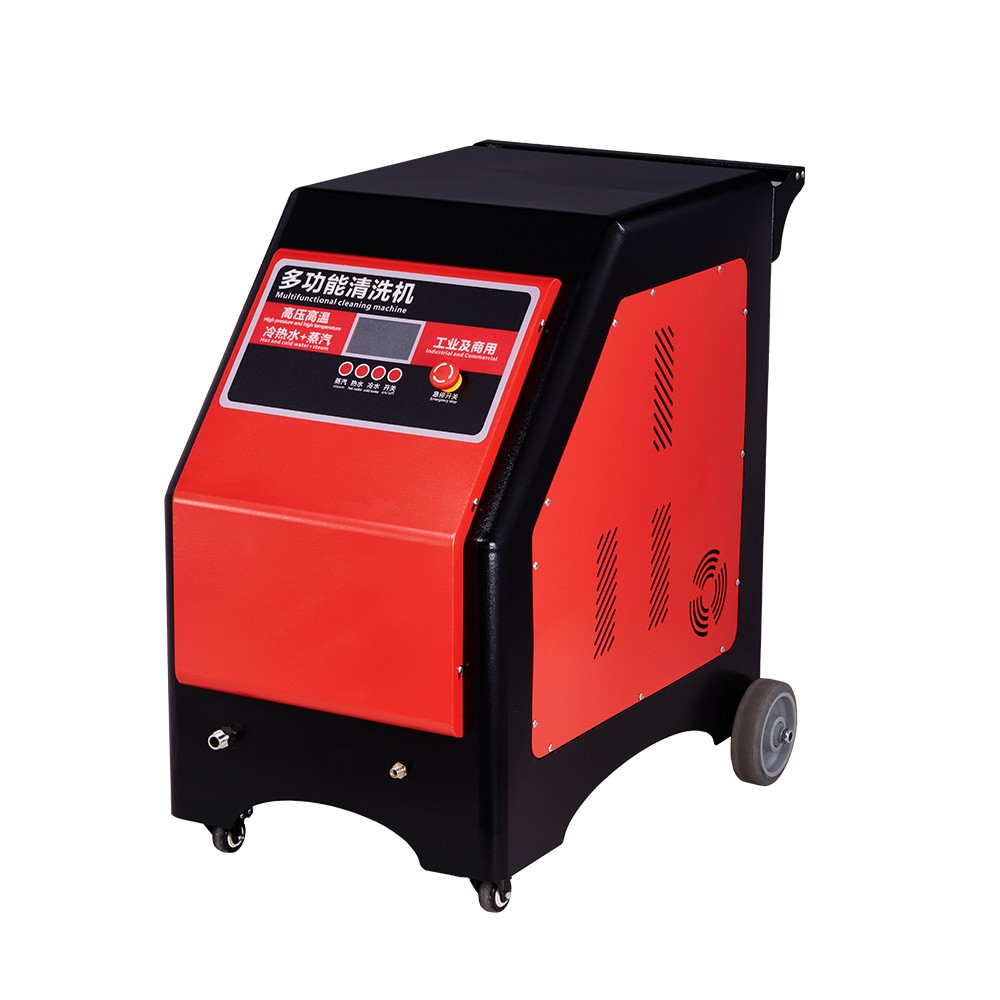

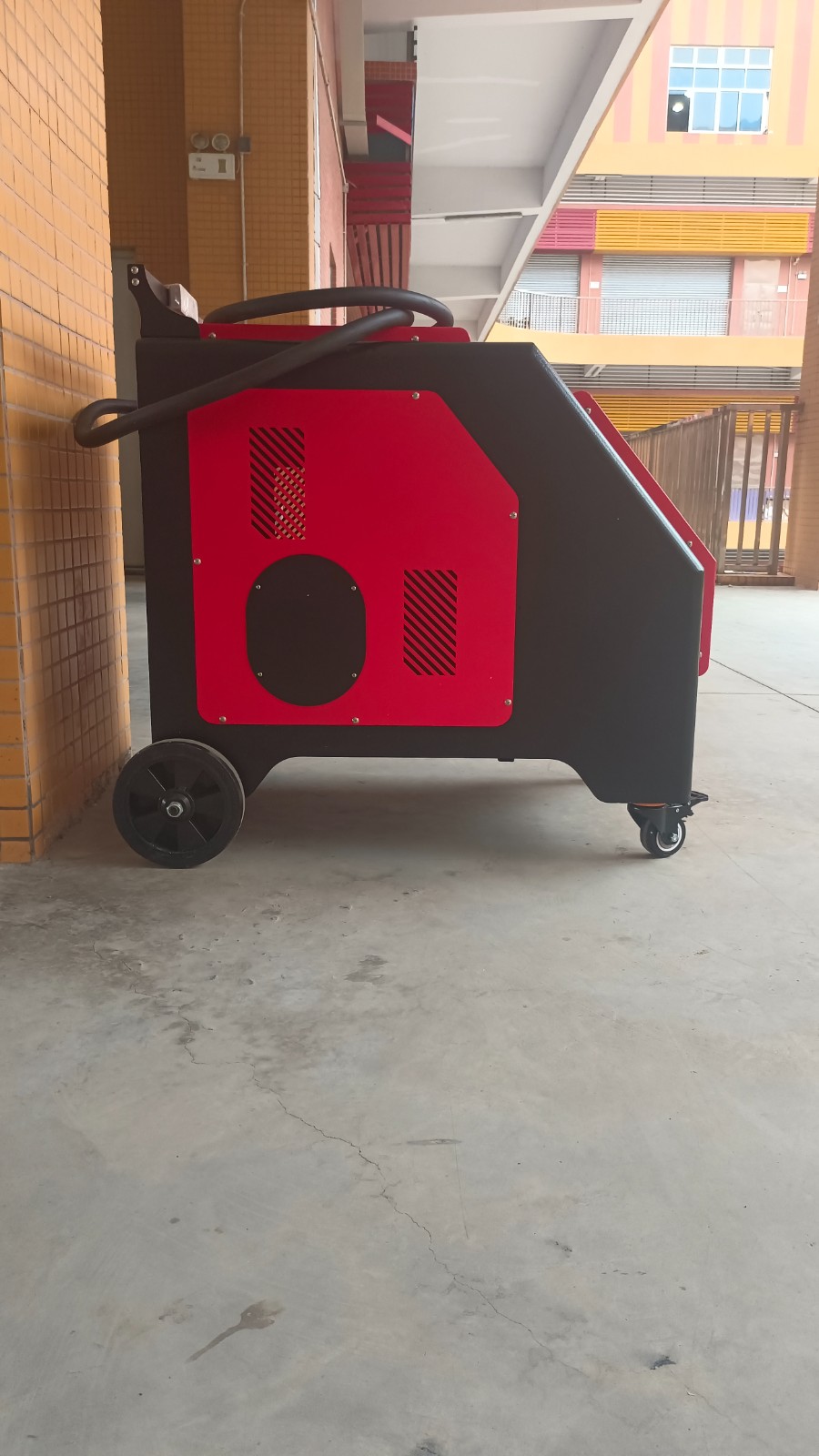

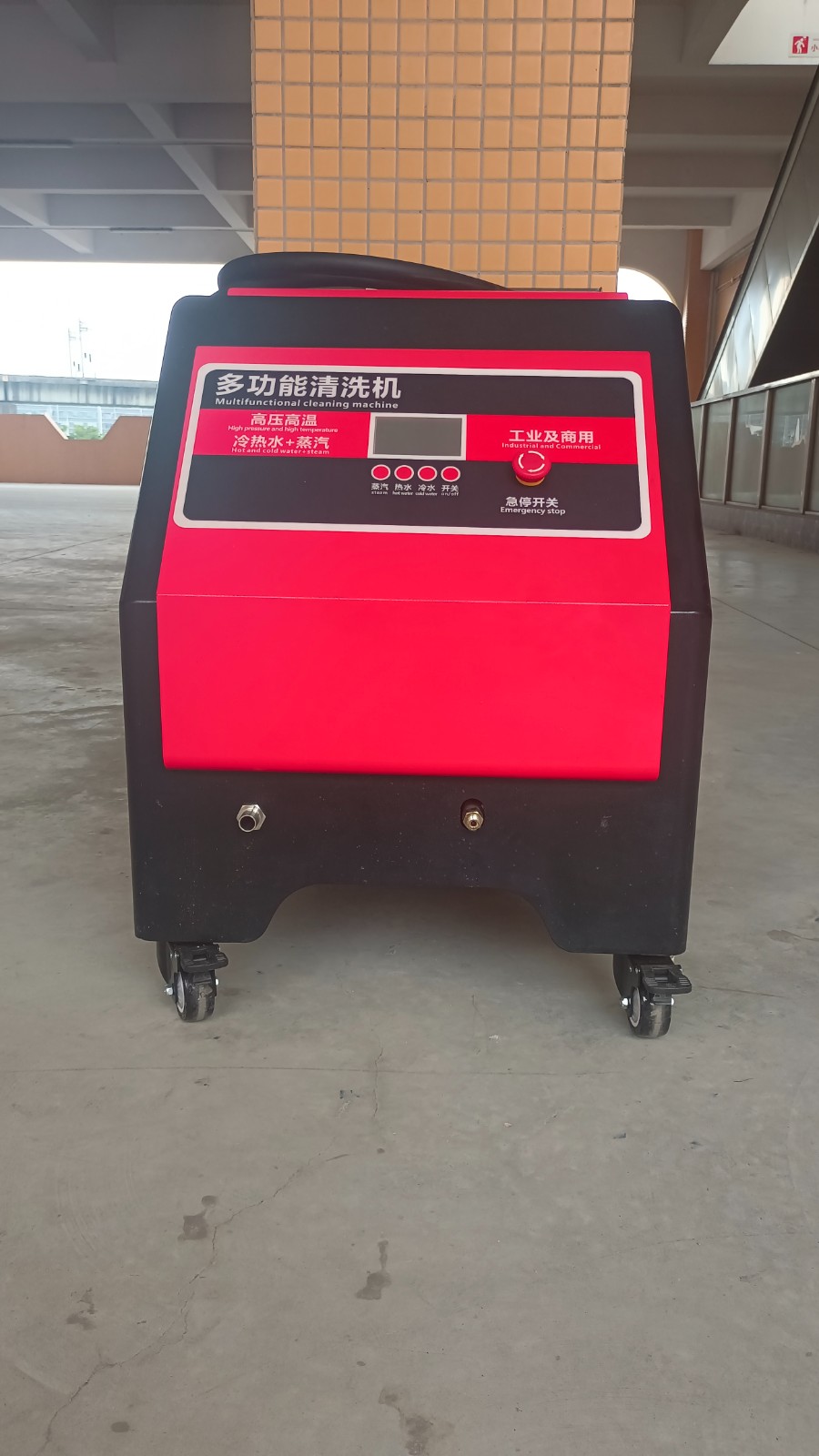

H4 Pure Electric Version

Oil pipeline de-oiling and de-icing, food equipment, automotive industry, large dock equipment, large canteens, factories, automated cleaning, etc!

Features

Multi-function cleaning machine

High temperature has strong physical characteristics of thermal degradation, which can quickly decompose the viscous properties of oil stains and possesses unique thermal decomposition capabilities. High-pressure hot water or steam at high temperature can not only remove dirt but also kill bacteria! Furthermore, it contains no chemicals and is non-corrosive, thus causing no damage to site equipment!



1.Rapid heating:

The instant heating module can quickly heat water and work continuously. It can generate steam in 20 seconds and reach saturation within 1 minute!

2. High-pressure hot water:

Instant high-pressure hot water, with a temperature reaching up to 95℃, coupled with the powerful impact of high water pressure, ensures efficiency and ease of use!

3.High-temperature steam:

High-pressure and high-temperature steam, with a temperature ranging from 100 to 200℃, has excellent thermal decomposition effects. The steam uses less water, is environmentally friendly, and pollution-free. It can also clean delicate parts of equipment.



Product Model and Parameters

ParameterH3 Electric VersionH4 Electric VersionH5 Electric VersionH6 Electric Version
Rated Voltage:380V380V380V380V
Rated Frequency:50HZ~60HZ50HZ~60HZ50HZ~60HZ50HZ~60HZ
Motor Power:1800W1800W1800W1800W
Heating Power:20KW24KW30KW36KW
Cold & Hot Water Pressure:120bar150bar180bar180bar
Cold & Hot Water Consumption:8L/min8L/min8L/min8L/min
Hot Water Temperature:50~95°C50~95°C50~95°C50~95°C
Steam Pressure:22bar26bar32bar38bar
Steam Consumption:0.6~0.9L0.7~1L0.8~1.2L0.8~1.2L
Steam Temperature:100~200°C100~200°C100~200°C100~200°C
Steam Pipe Length:10M10M10M10M
Power Cable Length:3M3M3M3M
Power Cable Specification:Three-phase 6mm²Three-phase 6mm²Three-phase 10mm²Three-phase 10mm²
Water Tank Capacity:40L40L40L40L
Net Machine Weight:73KG73KG78KG78KG
Machine Dimensions:906585cm906585cm906585cm906585cm



No previous NEXT:H8 Pure Electric Version
